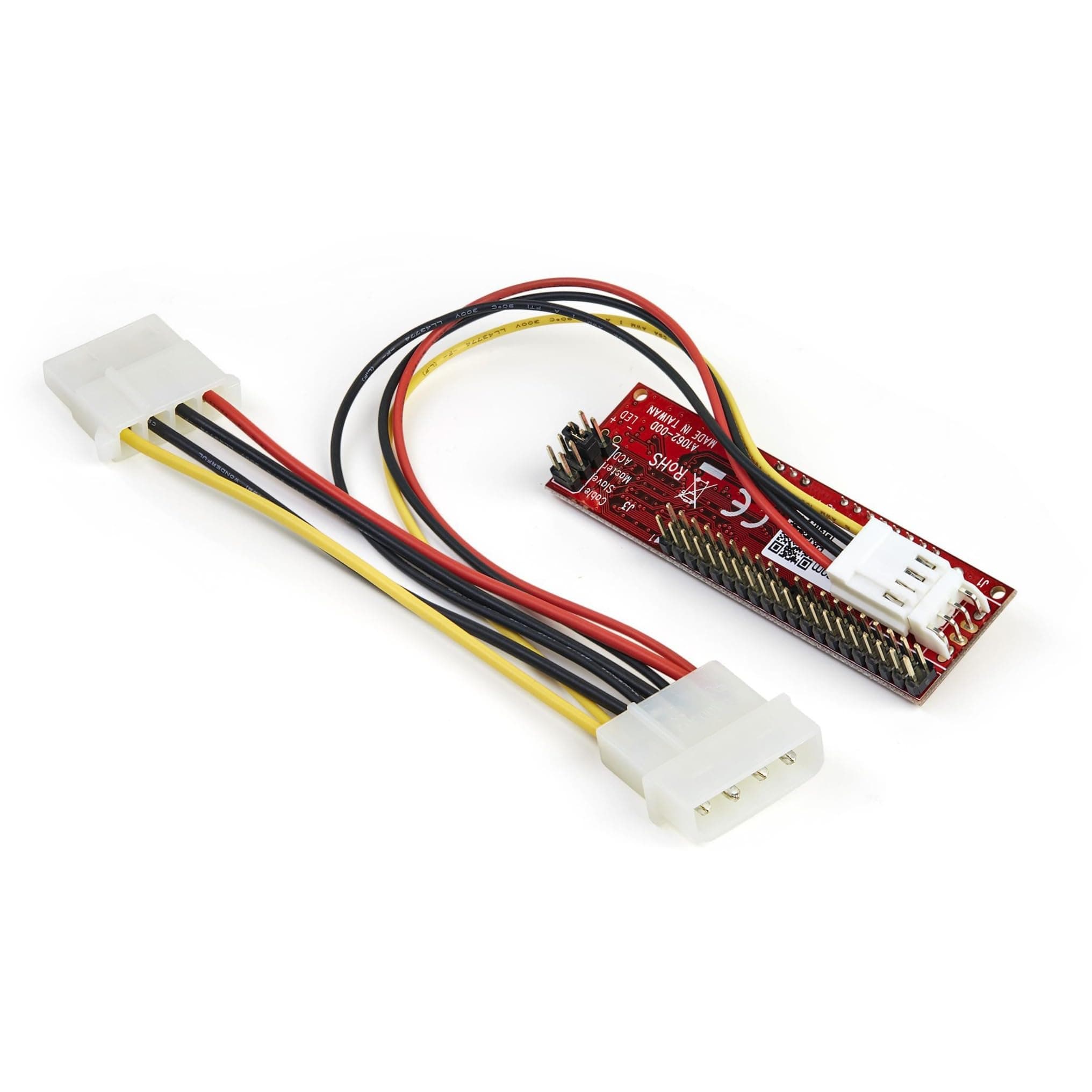

StarTech.com IDE to SATA Hard Drive or Optical Drive Adapter Converter - 40-Pin PATA to 2.5" SATA HDD / SSD / ODD Converter (IDE2SAT2) - IDE to SATA Adapter (IDE2SAT2)

I used this with a SATA HDD to upgrade an IDE based audio recorder (Yamaha AW1600). It worked well with the two drives I tested. These were a Vertex 2 SATA II 60GB and a Samsung 840 EVO 250GB. Having tried two other SATA to IDE interfaces, this was the only one I found that worked properly in my particular scenario. The other interfaces I tried either did not work fully or were very slow. I have not done exhaustive testing but it does appear that this is a very good product.

These are probably the better versions of this type of drive conversion for SATA drives into IDE cables. If piecing together a system with any value or stability requirement, I would stick with these. Perfect for things like modified original XBOX systems too. I will say that due to the design they may not suit all needs. There are alternative versions which plug in on the motherboard side instead of drive side. These have the advantage of not requiring IDE cables. I thought it worth mentioning as for some people this may be a better option, so look for these instead, however be aware that most of the ones which fix to the IDE plug on a motherboard take up the entire IDE channel, where as ones like this allow for the traditional dual drive with a master and slave drive.

Like many others I bought this to use with a modded original Xbox. You'll need an 80 pin cable to go along with it but then you should be able to use any drive - I went with a 1TB Kingston A400 SSD and it works great. Simple plug and play affair. The power cable is a bit long for this and you don't need the passthrough but it's nice to have. If I'm really that bothered I can just wire up or find a Molex to Berg cable if I really want to.

It is a bit overpriced for what it is. It's a premium option but even then there are concerns about optical drive compatibility. The cheapness of the IDE connector is annoying. This is probably the best option for hard drives and if you're using a master then slave setup. If you're just wanting to convert a single optical drive then it's probably better to take a chance with a cheap no-name adapter from eBay or AliExpress.

These adapters are absolutely outstanding and have allowed me to bring an old PC with a failed IDE drive back to life with a duel boot XP and Win98 SSD install. The pins are strong, I don’t think they will bend like the cheaper adapters. They also work for attaching a modern Blu-Ray drive to an older IDE cable system. Just remember if using more than one to move the pre-installed jumper to either slave or cable to prevent conflicts with the master drive. Cons: Remember to place electrical tape on the back of the pins, as they will short out on the PC case if they make contact. I would have liked if the IDE pins had a plastic guide around them, just to be 99% sure that they won’t get bent, but as mentioned they are very strong and well made. Final Tip: If you are using these to install Win98, stick to an SSD under 137GB and create a 7.5GB partition for the OS or you will get stuck at ScanDisk during setup. Then a secondary partition to make use of the rest of the disk space.

Had a cheap green IDE-SATA card from ebay, it didn't work and was a waste of money, the 40-pin 80 wire ribbon cable that came with it was too short as well. This startech IDE-SATA worked fine, put the jumper to slave by putting the clip on the slave pins, it picked up my 2TB Seagate HDD without issue when I checked in the chimp software. I also got a longer 40-pin 80 wire ribbon (60cm) which was easier to channel within the xbox. (I used the chimp software to copy eeprom/original HDD to the new one and create E, F & G partition. Then I had to use xbpartitioner to make those partitions visible. Split the HDD between F & G, first formatted it with a megabyte less than given. Then formatted it again with all the available megabytes, this worked. Also set to 64mb cluster. Would recommend this for xbox original HDD replacement.

Great product and works every time/install. However, as the device is using headers rather than an IDE port, installing and reinstalling (during cloning procedure for chimp softmod) the headers can bend out of place and in one instance I had to replace the headers with a new set so please take care when installing and reinstalling. This is the best device for this task and is worth every penny, but please Startech change those cheap headers for and actual IDE port

Worked great to connect a sata HDD to my original Xbox, letting me upgrade the storage to store more games.

This product is fantastic. Much better than the cheap options available on facebook. Upon receipt I was blown away by the weight of the product compared to the cheap one I was sending back. Typical Startech quality on full display here. The Good: - Works seamlessly in an original xbox to allow for the use of massive SATA drives (I used it to max out the 2TB limitation of the hardware) - Made with good materials - Includes a molex passthrough to chain the adapter between a source and another drive - Includes jumpers to allow master/slave/cable select - The power adapter attaches parallel to the board, freeing up space in otherwise craped situations The Bad: - Both sides of the board is left entirely exposed, inviting shorts. Would highly recommend taping off the back of the board, regardless of use - The power cable uses the mini-molex plug used by legacy floppy drives, meaning you need to use the included cable to power the adapter. Not a deal breaker, but extra, unnecessary, wires always suck The Ugly: - As opposed to a standard plastic ATA socket, this adapter uses a pin header. Your IDE ribbon will fit fine, but it seems to attach muss less sturdy This device is 300% of the price of competing cheap options, but it is largely worth it to have a one-and-done solution. If you're looking to upgrade your original xbox hard drive in 2021, you really can't go wrong with this.

旧式3.5インチを２．５インチHDDを変更に使用した 動作良好でした

Najważniejsze, że ze starym kontrolerem IDE nowy napęd DVD działa, co prawda jeden - tak jakby przejściówka zapisywała sobie go (ten pierwszy napęd podpięty do niej) w pamięci i już żadnego innego nie chciała rozpoznać (jakaś metoda na jej reset?).

I've used a few of these in Windows 98 gaming PCs that only support IDE. It means that all of the SATA HDD's I have lying around can be installed in these retro systems, as IDE drives are hard to find and overpriced these days. There are some operating system and hardware limitations of your retro system if you wish to use larger SATA drives, so be prepared to use something like Seatools to "trick" your larger SATA drive into thinking it's only 128GB/137GB in capacity for Win98 usage for example.. I've tried cheap ebay copies of this item and they are intermittent, it's not worth the hassle, spend the money on this for a reliable and great experience ;-)

Läuft perfekt in meiner XBOX-CLASSIC V1.1
