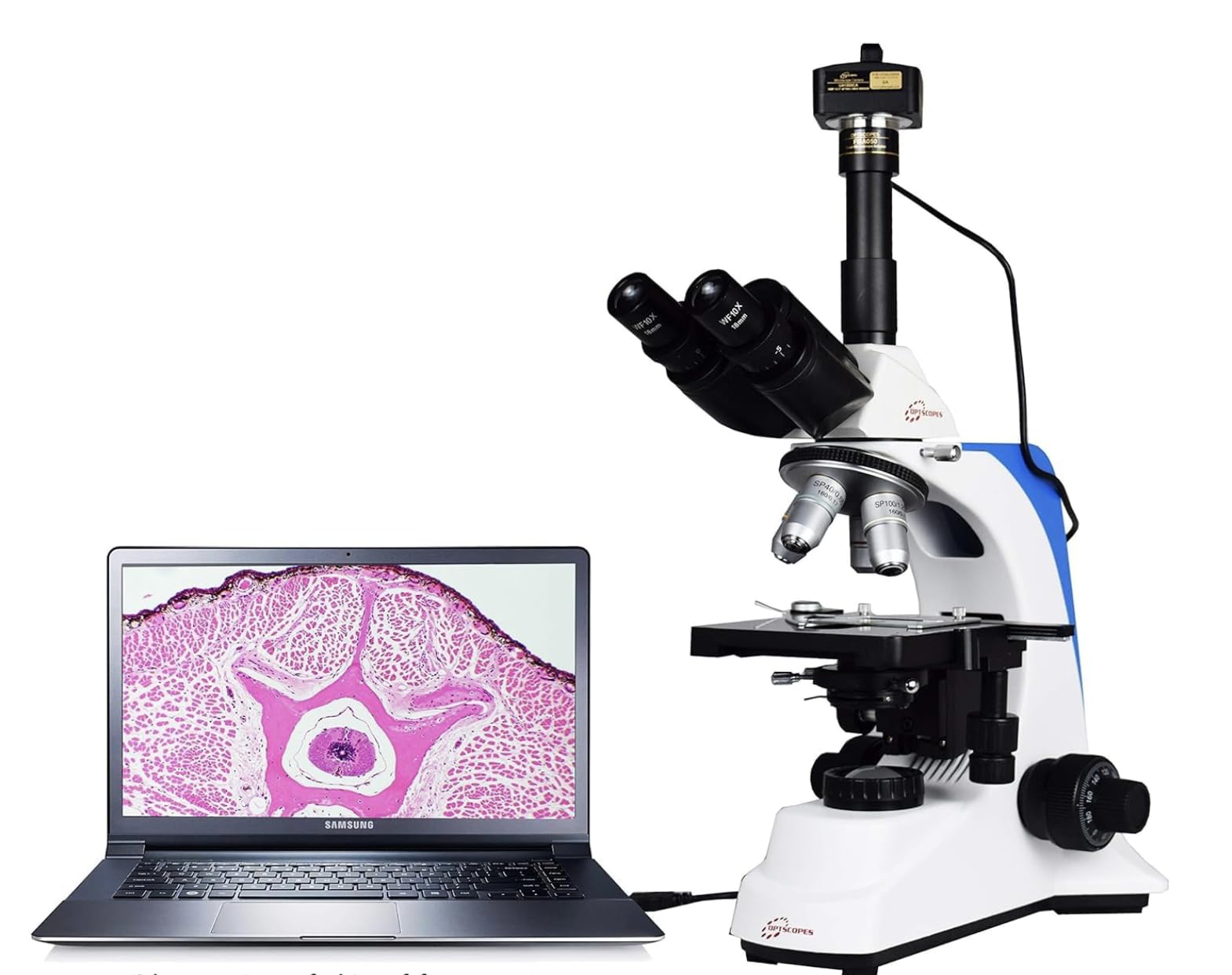

Optscopes Advance 40x-2000x Digital Microscope with 5.1MP IS-500 CMOS Microscope Camera (for Education, Pathology, Research and Teaching)

Description

S P E C I F I C A T I O N S MAIN BODY- Highly rigid, vibration-free single piece (base, column & arm) Aluminum alloy casting, with transmitted light, power supply & brightness control integrated into the base. New attractive design VIEWING HEAD- 30° inclined Siedentopf head, interpupillary distance: 55-75mm, ±5 diopter adjustable, 360° rotatable EYEPIECE- Wide Field eyepiece WF 10x, FOV 18mm NOSEPIECE- Ball bearing loaded quadruple nosepiece with precise, positive stops for centered alignment of objectives. OBJECTIVE- Semi Plan anti fungus Objective 4X, 10X, 40X (S) and 100X Oil, (S) STAGE- Graduated double layer Mechanical rectangular stage, size 140 x 140mm with cross travel 90mm (X) x 65mm (Y) on ball bearing with co-axial controls. FOCUSING MOVEMENT- CO AXIAL coarse & fine focusing mechanism, with maximum height lockable clip. Ergonomically designed for easy grip. Focusing range-30mm CONDENSER- Centerable ABBE Condenser, NA 1.25 with aspheric lens. Iris diaphragm and Swing-in and swing-out filter holder LIGHT SOURCE- Illumination system LED 3.5W 3V with intensity control regulator, Universal power supply 110V - 240V, CE approved. PACKING & ACCESSORIES- Carrying Case: Styrofoam Packing & Outer corrugated box Supplied with: User manual, Vinyl Dust cover, Cleaning cloth and 01 units Fuses
