⚡ Power Up Your Ride with Reliability & Style!

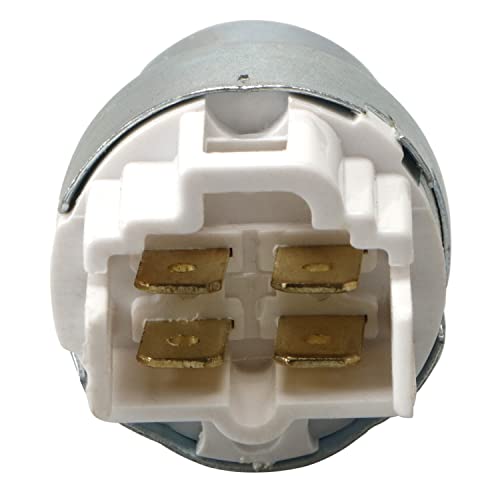

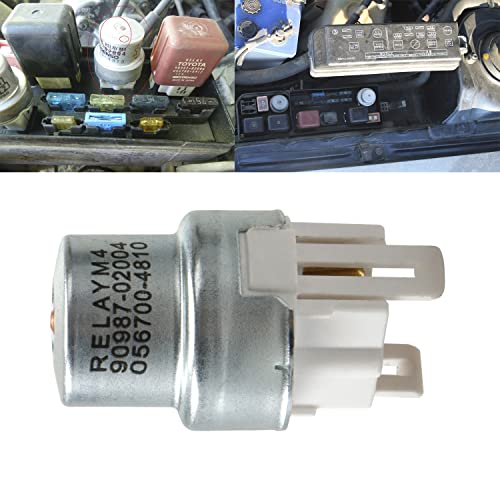

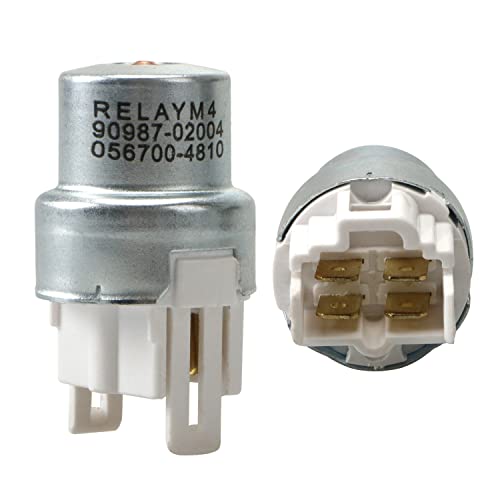

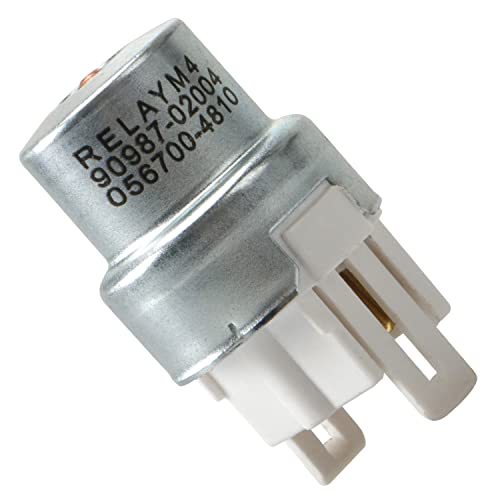

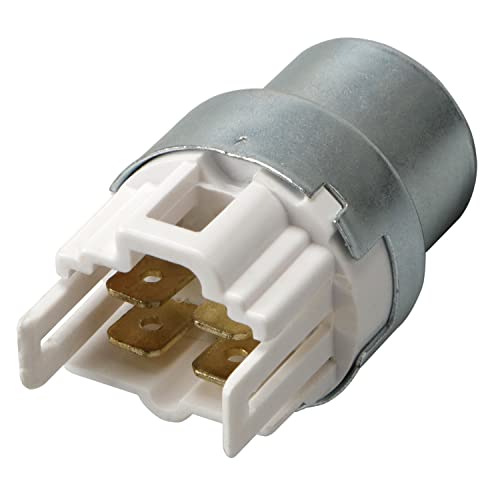

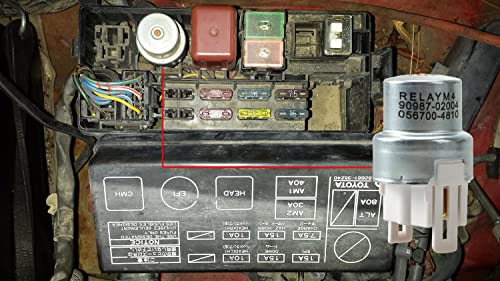

The Aeola Multi Purpose Relay 90987-02004 is a 12V, 22A automotive relay designed for Toyota, Lexus, and similar vehicles. Engineered with high-quality materials to meet or exceed OEM standards, it supports multiple automotive functions including fuel pumps, headlights, and fans. Compact and surface-mountable, it offers easy installation and is backed by a 12-month warranty, making it a dependable upgrade for professional-grade vehicle electrical systems.
| ASIN | B09MTB2638 |
| Are batteries included? | No |
| Best Sellers Rank | #398,140 in Car & Motorbike ( See Top 100 in Car & Motorbike ) #336 in Wiring Kits |
| Brand | Aeola |
| Coil Voltage | 12 Volts |
| Connector Type | Screw |
| Contact Current Rating | 22 Amps |
| Contact Material | Copper |
| Contact Type | Normally Open |
| Country of Origin | USA |
| Current Rating | 22 Amps |
| Customer Reviews | 4.4 4.4 out of 5 stars (129) |
| Date First Available | 22 December 2021 |
| Included Components | 90987-02004 Relay |
| Item Dimensions LxWxH | 43 x 27 x 62 Millimeters |
| Item Height | 2.45 Inches |
| Item Weight | 91 g |
| Item Width | 1.05 Inches |
| Item model number | 90987-02004 056700-5260 RY51 |
| Manufacturer | Aeola |
| Maximum Switching Current | 22 Amps |
| Maximum Switching Voltage | 12 Volts |
| Model number | 90987-02004 056700-5260 RY51 |
| Mounting Type | Surface Mount |
| Number of Memory Sticks | 1 |
| Operation Mode | Automatic |
| Product Dimensions | 4.32 x 2.67 x 6.22 cm; 91 g |
| Specification Met | RoHS |
| UPC | 610877977550 |
A**C
After replacing the old relay with this one I still had the problem. After MONTHS of trying to find out what the problem was it turned out that this relay DOES NOT WORK
A**R
Got one for my 2004 Kawasaki 300 bayou.worked great!
A**R
After diagnosing my Kawasaki Bayou 250 for starting troubles I narrowed it down to this relay. It was what kept my ATV from starting. I’d hit the start button and nothing. I could cross the selinoid and start the ATV. I knew it had to be something other than the selinoid and knew it wasn’t the starter or battery. It was the relay 100%. All the pins lined up correctly and it fit like a glove. I’m usually not so lucky buying online and getting the right part and was leery. But so far so good as far as this part goes. I’m giving the part a 5 for now. If for some reason it fails me too quickly I’ll be back to change my review.
G**.
Exact same relay on my Massy Tractor , great price
T**.
Replaced my oem efi relay with this relay, and started the truck. Ran fine for a couple minutes. Took it for a test drive and within minutes the truck shut off while going 20mph. Was able to stop safely and popped the hood. The relay had melted. Do not use this in your Land Cruiser.
